TechWorks™ work tables are designed to be a DURABLE, FLEXIBLE AND ERGONOMIC solution for today’s high-tech workplaces. While it is ideal as a technical workbench for the factory side of the floor, TechWorks™ demonstrates its true capabilities in specialty work spaces such as telecommunications, laboratories, computer diagnostics and information systems. Individual users can custom build for their individual needs, while maintaining peak productivity, performance and safety.

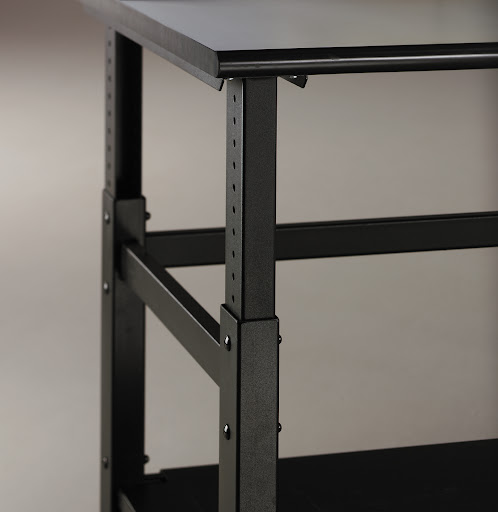

Individual operators have the ability to adjust their workspace height and to custom build configurations for their individual tasks, the placement of tools, parts, air and vacuum services, and lighting. This will assure employers of peak productivity and safety while creating a user-friendly environment.
Features:
Also available:
- 1 3/4" butcher block surface with bullnosed front edge.
- Low pressure laminate (1" thick)
- ESD laminate (1 1/8" thick), including grounding wire
- Table sizes available in 48", 60" and 72" widths, and 30" and 36" depths.
|
|
|
Standard Paint Finishes: DX5 Chameleon Textured, DU5 Autumn White Textured, DW5 Graphite Textured, DV5 Black Textured
Kwik-Ship Finishes: Black textured paint with Storm Gray Maytrix laminate.
Mayline Group provides its Limited Lifetime Warrants to the original retail purchaser. The Mayline Group warrants that its labeled products will be free from defects in design, material and workmanship. The Mayline Group will repair the product or replace it with a comparable product free of charge, subject to the normal use provision. This warranty is valid for as long as the original customer owns and used the product.
Exceptions to this warranty include: Seating mechanisms, pneumatic cylinders, fabric and foam, which are warranted for one (1) year.
This warranty is void if the customer modifies the product, if attachments are made to the product, or if the product is not installed or used in accordance with Mayline Group's installation and application guidelines.
This warranty is the customer's sole remedy for product defect, and no other express or implied warranty is provided. Mayline Group shall not be liable for consequential or incidental damages arising from any product defect.
For warranty service, please contact Mayline Group at 800-822-8037 or 920-457-5537.
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
TABLES:
14-gauge steel construction capable of supporting 1000 lbs., interchangeable leveling
guides or locking casters support 250 lbs. each. Optional full or partial base shelf, weight
capacity 400 lbs. Product ships knocked down.
ORGANIZER FRAMES:
14-gauge steel construction capable of supporting 400 lbs.,
components adjustable in 1" increments, horizontal and vertical integrated cable management,
mechanically fastens to worksurface, optional 19" rack bracket adapter kits.
WORKSURFACES:
Available in melamine, high-pressure laminate or ESD (Electro-Static
Discharge) laminate with bullnose front edge with 3mm edge banding on sides and back.
15⁄8" x 3" Cable Management Grommets (2 on 48" and 60", 3 on 72", 4 on corner unit),
optional under-counter keyboard storage.
SHELVES:
14-gauge steel shelf supports, 18"D shelf supports 200 lbs., corner shelf supports
250 lbs. Adjustable in 1" increments. Available in melamine, high-pressure laminate or ESD
laminate with bullnose front edge and 3mm edge banding on sides and back. Tilt shelves
have full-length safety lips and are adjustable in increments of 0º, 5º, 10º and 15º.
|
|
|
|
|
|
|
|
|
