TECHWORKS is ideal for clinical, biotech, physical and environmental laboratories. Standard or custom, we can design and configure a system to meet your exact requirements, quickly and cost effectively.

ORGANIZER FRAMES - are available in 24", 36" and 48" Heights 48", 60", and 72" Widths, and 48" corner configurations. Uprights are single slotted in 1" increments for maximum height adjustability of components. Organizer frames incorporate both horizontal and vertical integrated cable management options without requiring external cable channels. 14-gauge cold rolled steel construction unit supports a maximum load rating of 400 lbs. (evenly balanced, cantilevered on one side). The organizer frames are mechanically fastened to worksurfaces.

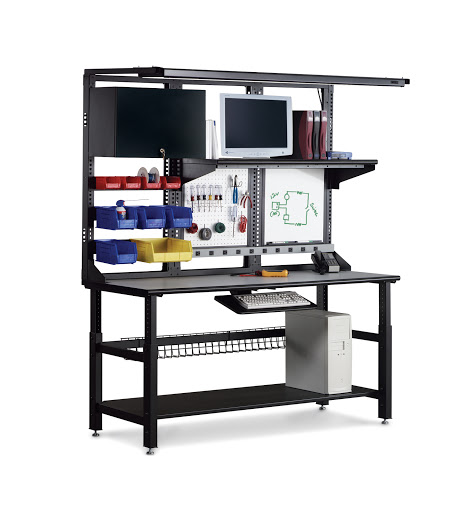

Mayline TechWorks - 72" station is ideal for electronics diagnostics, computer labs and IT departments, even web hosting.

Mayline TechWorks - Corner Workstation

Mayline TechWorks - 72" station shown with optional flat panel mounting arms. Perfect for security or telemetry monitoring.

TECHNICAL SPECIFICATIONS

• TABLES: 14-gauge steel construction capable of supporting 1000 lbs., interchangeable leveling guides or locking casters support 250 lbs. each. Optional full or partial base shelf, weight capacity 400 lbs
• ORGANIZER FRAMES: 14-gauge steel construction capable of supporting 400 lbs., components adjustable in 1" increments, horizontal and vertical integrated cable management, mechanically fastens to worksurface, optional 19" rack bracket adapter kits.
• WORKSURFACES: Available in melamine, high-pressure laminate or ESD (Electro-Static Discharge) laminate with bullnose front edge with 3mm edge banding on sides and back. 15⁄8" x 3" Cable Management Grommets (2 on 48" and 60", 3 on 72", 4 on corner unit), optional under-counter keyboard storage.
• SHELVES: 14-gauge steel shelf supports, 18"D shelf supports 200 lbs., corner shelf supports 250 lbs. Adjustable in 1" increments. Available in melamine, high-pressure laminate or ESD laminate with bullnose front edge and 3mm edge banding on sides and back. Tilt shelves have full-length safety lips and are adjustable in increments of 0o, 5o, 10o and 15o.

The ESD Protective Work Surface provides the static safe work area of the ESD Protected workstation by providing an electrical path to ground. It assures a common electrical potential between personnel and items handled on the surface.  The solid brass Swivet wrist strap banana jack receiver rotates while maintaining a constant connection with ground to assure personnel protection.

The solid brass flush-mount terminals are designed to insure an intimate, permanent and reliable connection between the ESD Protective Work Surface and earth ground.  Individual users can adjust their workspace height ranging from 26"-38".

Shelf and accessory brackets mount into organizer uprights easily and securely, adjusting on 1" increments.  Personal grounding kits Air, gas, and vacuum services can be positioned on service bars which include power.

The Organizer Frames incorporate both horizontal and vertical integrated cable management. Cable baskets hang off the table base keeping cables off the floor and easily accessible.
